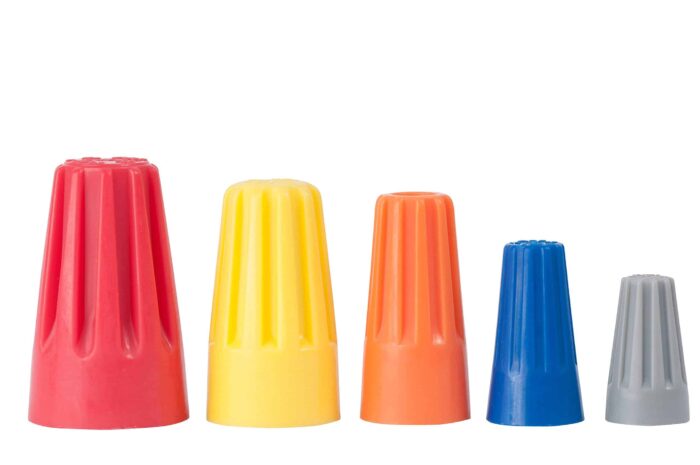

ACT STANDARD WIRE CONNECTORS

$39.90

ACT STANDARD WIRE CONNECTORS Sure-grip ribs improve grasping ability and comfort. These are getting to be the standard in the electrical industry!!

ACT Fastening Solutions: Cable Ties, Fasteners and Tools

Get a Quote

ACT STANDARD WIRE CONNECTORS



Sure-grip ribs improve grasping ability and comfort. Threaded funnel entry guides wires into the connector easily. Deep skirt entry provides protection from flash-over and shorts. Fixed square spring provides more secure gripping on conductors



GRAY

ITEM# ED- GY-SC-1000  (1000/BAG) $39.90 CASE 10 BAGS

ITEM# ED- GY-SC-5000  (5000/BAG) $109.90 CASE  5 BAGS

ITEM# ED- GY-SC-10000  (10,000/BAG) $159.90 CASE  3 BAGS

Color / Material: Gray Thermoplastic
Wire Range Max: 1#14+1#20
Wire Range Min: 2#22
Volts: 300
UL Listed: UL Listed
CSA Certified: CSA Certified
RoHS Compliant: RoHS Compliant
Product Family: AL-ACS-GY
Weight per bag: C=.2 lbs, M=1.1 lbs
Weight per case: C=2 lbs, M=22 lbs
Country of Origin: China



BLUE

ITEM# AL-ACS-BL-C (100/BAG) $4.99 CASE  50 BAGS

ITEM# AL-ACS-BL-M (1000/BAG) $24.90 CASE 10 BAGS

Color / Material: Blue Thermoplastic
Wire Range Max: 3#16
Wire Range Min: 2#22
Volts: 300
UL Listed: UL Listed
CSA Certified: CSA Certified
RoHS Compliant: RoHS Compliant
Product Family: AL-ACS-BL
Weight per bag: C=.2 lbs, M=1.6 lbs
Weight per case: C=2 lbs, M=16 lbs
Country of Origin: China



ORANGE

ITEM# AL-ACS-OR-C (100/BAG) $5.99 CASE  50 BAGS

ITEM# AL-ACS-OR-D (500/BAG) $19.90 CASE 10 BAGS

Color / Material: Orange Thermoplastic
Wire Range Max: 4#16+1#20
Wire Range Min: 1#18+1#20
Volts: 600
UL Listed: UL Listed
CSA Certified: CSA Certified
RoHS Compliant: RoHS Compliant
Product Family: AL-ACS-OR
Weight per bag: C=.4 lbs, D=1.6 lbs
Weight per case: C=4 lbs, D=16 lbs
Country of Origin: China



 YELLOW

 ITEM# AL-ACS-YW-C (100/BAG) $7.99 CASE  10 BAGS

 ITEM# AL-ACS-YW-D (500/BAG) $39.90 CASE  10 BAGS

Color / Material: Yellow Thermoplastic
Wire Range Max: 1#10+2#14+1#16
Wire Range Min: 3#20
Volts: 600
UL Listed: UL Listed
CSA Certified: CSA Certified
RoHS Compliant: RoHS Compliant
Product Family: AL-ACS-YW
Weight per bag: C=.6 lbs, D=2.3 lbs
Weight per case: C=6 lbs, D=23 lbs
Country of Origin: China



RED

ITEM# AL-ACS-RD-C (100/BAG) $9.90 CASE  50 BAGS

ITEM# AL-ACS-RD-D (500/BAG) $39.90 CASE 10 BAGS

Color / Material: Red Thermoplastic
Wire Range Max: 3#10
Wire Range Min: 3#18
Volts: 600
UL Listed: UL Listed
CSA Certified: CSA Certified
RoHS Compliant: RoHS Compliant
Product Family: AL-ACS-RD
Weight per bag: C=.8 lbs, D=3.1 lbs
Weight per case: C=8 lbs, D=31 lbs
Country of Origin: China
